Vision Guide
Integrated vision guidance with easy configuration and calibration.

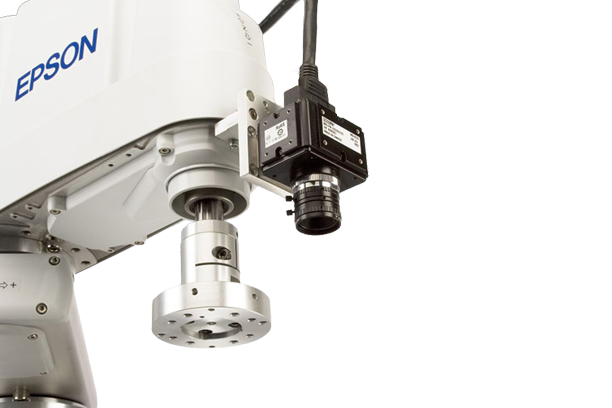

Designed for vision guidance applications, Epson Vision Guide makes precision robotic guidance easy to use. Fully integrated within the Epson RC+® development environment for easy configuration and calibration, this intuitive solution features a point-and-click interface that makes it simple for users of all levels. It also features wizards and auto calibration methods, plus a combination robot/vision simulator for rapid offline testing. With a single point of support for both robots and vision guidance, Epson Vision Guide allows for fast development and simplified maintenance. An efficient and versatile solution, it also includes tools to address inspection, gauging and barcodes.

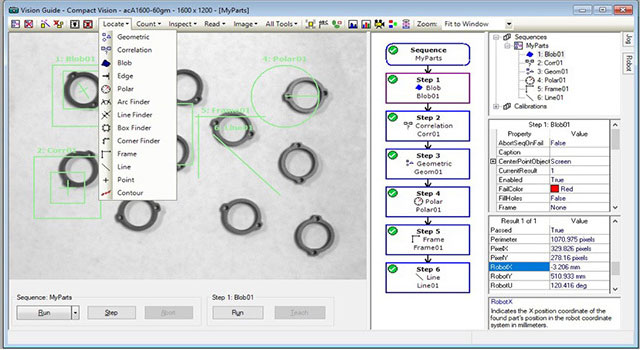

Vision guidance made easy

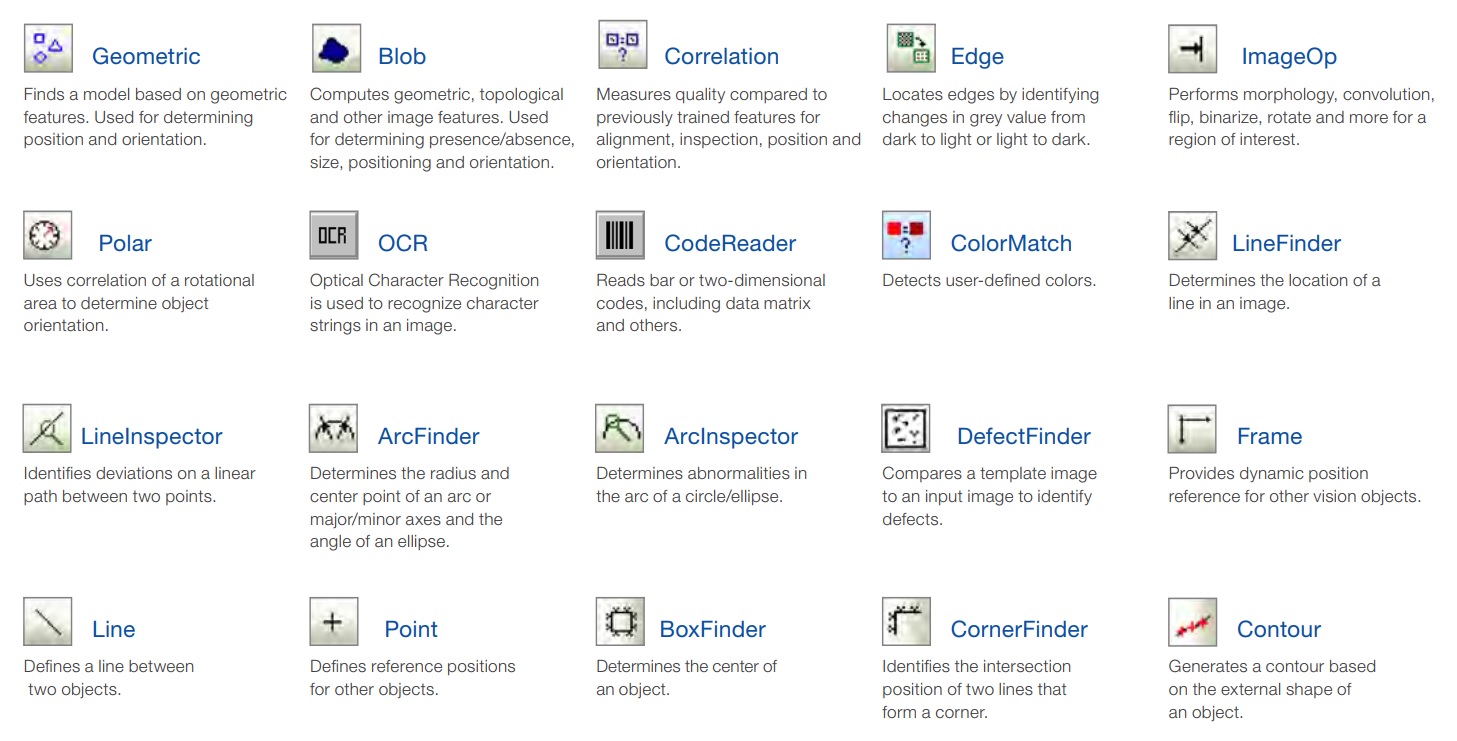

Versatile tool set
Main Specifications
System
CV2SA
CV2HA
PV1
Robot controller
RC700A, RC90, RC90B, T-Series, VT-Series
Cameras supported
(Epson cameras only)
(Epson cameras only)
GigE: Mono (0.3MP, 1.3MP, 2MP, 5MP, 10MP and 20MP) and Color (2MP, 5MP, 10MP and 20MP)
USB: Mono (0.3MP, 1.3MP and 5MP) and Color (1.3MP, 5MP)
USB: Mono (0.3MP, 1.3MP and 5MP) and Color (1.3MP, 5MP)
Vision tools
Locate: Geometric, Correlation, Blob, Edge, Polar, ArcFinder, LineFinder, BoxFinder, CornerFinder, Frame, Line, Point and Contour
Count: Blob, Correlation, Geometric
Inspect: Blob, DefectFinder, Line, LineInspector, ArcInspector and Color Match
Read: CodeReader and OCR
Image: ImageOp and Text.
Count: Blob, Correlation, Geometric
Inspect: Blob, DefectFinder, Line, LineInspector, ArcInspector and Color Match
Read: CodeReader and OCR
Image: ImageOp and Text.
Quantity of connectable cameras
Up to 6 cameras (2 USB and 4 GigE cameras)
Up to 8 GigE cameras
Image processing speed
Standard type
High-speed type
N / A
Safety standard
CE, UL, KC
N / A
Dimensions W x D x H (excluding rubber feet)
232mm x 175mm x 70mm
N / A
Operating temperature and humidity
5-40 deg C, 20-80% (non-condensing)
N / A
Direction of installation
Horizontal or Vertical
N / A
Power source voltage
DC 19 - 24 V
N / A
Rated electric current
11.57 A (at 19 V DC) - 9.16 A (at 24 V DC)
N / A
Weight
2.1 kg
N / A
Ethernet (for communication with Robot Controller)
RJ45: 4 ports (1000Mbs). Power over Ethernet (PoE) supported.
Can connect to HUB or Switch.
Can connect to HUB or Switch.
Ethernet (for GigE camera)
RJ45: 4 ports (1000Mbs). Power over Ethernet (PoE) supported.
Interface (connection)
USB
USB 2.0: 4 ports (for USB Camera, USB Memory, Mouse, Keyboard)
N / A
Monitor connection
VGA: 1 port, DVI-D: 1 port (SXGA fixed)
The 2 ports display the same output (mirror display)
The 2 ports display the same output (mirror display)
CON1, CON2
Not available
CV2 standard accessories
Mounting plates (1 set), Power supply connector (1 pc), Connector cap for CON (2 pcs)
N / A
