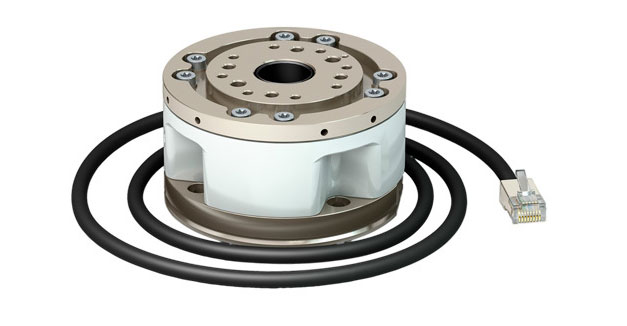

Force Guide
Intuitive robot force guidance for high-precision performance
Epson’s high-performance Force Guide takes robot automation to the next level with superior precision and outstanding rigidity. Powered by proprietary Epson Quartz Technology, it enables Epson robots to detect six axes of force with precision down to 0.1 N. Driven by real-time servo system integration, Force Guide delivers fast, tactile feedback to guide robots for high-precision parts placement. Easy to configure and set up, Force Guide features a point-and-click interface with pre-configured solutions and built-in objects, reducing the development time for precision repeatability applications.
Advantage Epson
Drawing on our global expertise in robotic solutions, Epson created Force Guide as a tool to achieve higher productivity in automated manufacturing processes. Epson Force Guide features proprietary Quartz Technology which provides remarkable rigidity and powerful performance, allowing customers to complete automation tasks that were previously not possible.
- Epson Quartz Technology
- High rigidity
- Powerful performance
Force Guide Applications

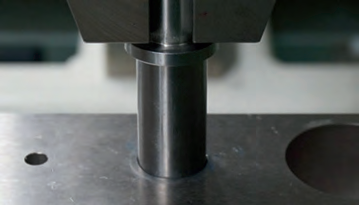

Parts and connector insertion

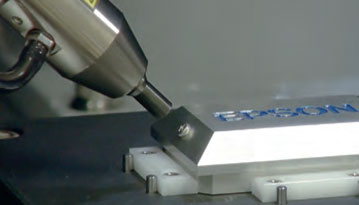

Screw driving

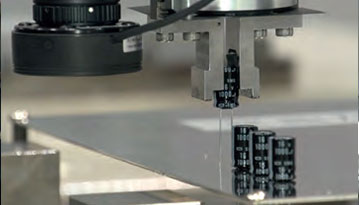

Delicate parts handling

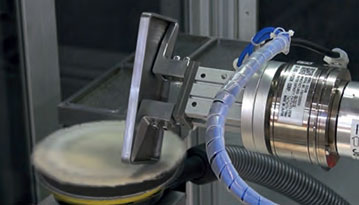

Grinding/polishing

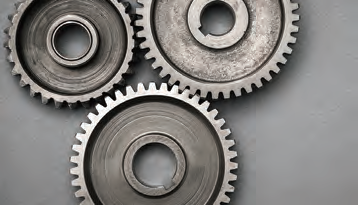

Gear meshing
Specifications
Compatible robots¹
C4-Series
N6
N2
RS-Series
G3
G6
G20
